EAST LIFT Spider Lift-Make Height No Longer A Difficulty

● Safety Certification:It complies with the EU EN280 standard and has obtained the CE certification.

● Stepless Speed Regulation:The XSES8 machine only requires one person to operate. All actions are controlled by the operating handle on the workbench, and the motor has stepless speed regulation. It effectively extends the service life of the storage battery and the motor, and the motor only consumes energy during operation.

● Large-angle Steering System:The XSES8 model is designed with a large-angle steering system, which gives the machine excellent flexibility.


● Disc Braking System:The XSES8 lifting platform adopts a disc braking system. When the machine is in a stopped state, the wheels are always in a braking state, and it can brake reliably on a 6-degree slope.

● Self-diagnosis Function:It has a self-diagnosis function, allowing customers to quickly and timely grasp the working status of the equipment itself and better maintain this equipment.

● Green and Environmentally: Friendly Since this machine uses a DC storage battery as the power source, it can be safely and quietly used for indoor or outdoor work.


Industry Solution
XSES8

Model: XSES8

Max Working Height: 10m

Max Platform Capacity: 450kg


GET a Quote!

WhatsApp:+86 15562189610

Email:operate01@eastlift.cn


  • 电动剪叉 (1).jpg
  • 电动剪叉 (2).jpg
  • 电动剪叉 (3).jpg
  • 电动剪叉4.jpg
EAST LIFT Spider Lift Details

Project

Performance Parameters

Model

XSES8

Working height,max

10m

Platform height,max

8m

Platform carrying capacity

450/120kg

Length

2.45m

Width

1.15 m

Stowed height

2.38m

Height of theguardrail after folding

1.72m

Height of the platform,max

1.24m

Platform size(L×W)

2.26×1.15m

Horizontal extension of the platform

0.9 m

Ground clearance

0.1/0.02 m

Turning radius,min

0.1/2.2m

Travel speed at full retraction

3.2km/h

Travel speed during lifting

0.8km/h

Allowable working angle,max

2°/3°

Gradeability

14°(25%)

Driving wheel

φ381*127mm

Total weight

2420kg

Lifting motor

24/3.3V/kw

Battery

4×6/240V/Ah

Charger

24/30V/A


Working Range of XSES8

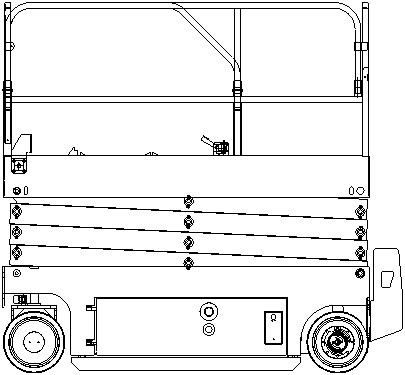

Size Information of XSES8
