EAST LIFT Spider Lift-Make Height No Longer A Difficulty

● Safety Certification:It complies with the EU EN280 standard and has obtained the CE certification.

● Stepless Speed Regulation:The XSES5 machine only requires one person to operate. All actions are controlled by the operating handle on the workbench, and the motor has stepless speed regulation. It effectively extends the service life of the storage battery and the motor, and the motor only consumes energy during operation.

● Large-angle Steering System:The XSES5 model is designed with a large-angle steering system, which gives the machine excellent flexibility.


● Disc Braking System:The XSES5 lifting platform adopts a disc braking system. When the machine is in a stopped state, the wheels are always in a braking state, and it can brake reliably on a 6-degree slope.

● Self-diagnosis Function:It has a self-diagnosis function, allowing customers to quickly and timely grasp the working status of the equipment itself and better maintain this equipment.

● Green and Environmentally: Friendly Since this machine uses a DC storage battery as the power source, it can be safely and quietly used for indoor or outdoor work.


Industry Solution
XSES5

Model: XSES5

Max Working Height: 6.5m

Max Platform Capacity: 200kg


GET a Quote!

WhatsApp: +86 15562189610

Email:operate01@eastlift.cn


  • 电动剪叉 (1).jpg
  • 电动剪叉 (2).jpg
  • 电动剪叉 (3).jpg
  • 电动剪叉4.jpg
EAST LIFT Spider Lift Details

Project

Performance Parameters

Model

XSES5

Working height,max

6.5 m

Platform height,max

4.5 m

Platform carrying capacity

200/120kg

Length

1.4 m

Width

0.76 m

Stowed height

2 m

Height of theguardrail after folding

1.61 m

Height of the platform,max

0.875 m

Platform size(L×W)

1.265×0.76 m

Horizontal extension of the platform

0.5 m

Ground clearance

0.065/0.015 m

Turning radius,min

0.1 m

Travel speed at full retraction

4km/h

Travel speed during lifting

0.5km/h

Allowable working angle,max

1.5°/2°

Gradeability

14°(25%)

Driving wheel

φ305*100mm

Total weight

985kg

Lifting motor

24/2.2V/kw

Battery

2×12/100 V/Ah

Charger

24/15V/A


Working Range of XSES5

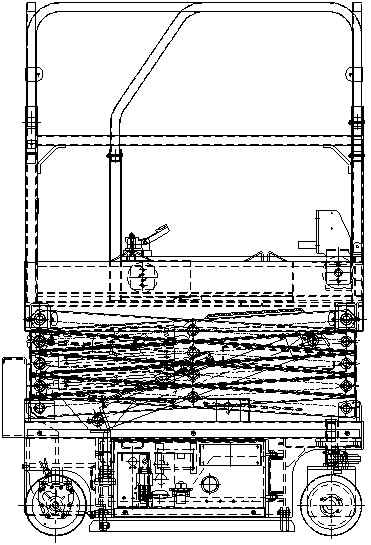

Size Information of XSES5
