● It can adapt to specific working environments, namely, it can operate in humid, highly corrosive, dusty, high - temperature and low - temperature conditions.
● The system adopts PLC and CAN bus control, simplifying wiring and facilitating maintenance and repair. Metal aviation connectors are used, with a protection rating of IP65.
● Boom extension, luffing, rotation, and platform movement are all controlled by electro-hydraulic proportional control, enabling stepless speed regulation.
● Audible and visual alarms are activated during equipment operation.
● Both upper and lower control consoles are equipped with emergency stop buttons, allowing operators to quickly cut off power in case of unexpected situations, preventing further platform movement.
● The lower control console is equipped with a fault display, while the upper control console features a battery level meter.
● Both upper and lower control consoles are protected by covers.
● All operations are controlled by joysticks on the work platform. The motor features stepless speed control, effectively extending the service life of the battery and motor. The motor only consumes energy during operation. The platform can safely move with the boom in any position, and the travel speed decreases as the lifting height increases.
● The machine is equipped with an intelligent charging system, utilizing a fully automatic charger that can complete the entire charging process automatically. Charging stops automatically once the battery is fully charged.
● Since this machine is powered by a DC battery, it can operate safely and quietly, making it suitable for both indoor and outdoor work.
● This machine is equipped with an emergency descent system, enabling it to complete tasks in case of a power outage.

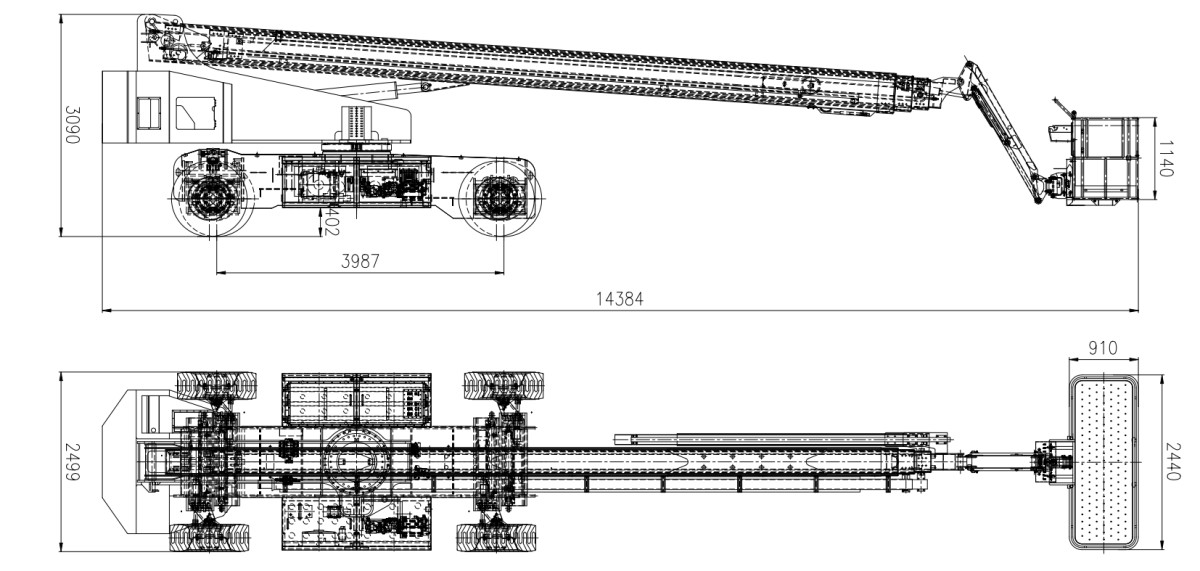

Model: XSTB38
Max Working Height: 40.4m
Max Working Radius: 24m
Platform Capacity: 300kg
