● It can adapt to specific working environments, namely, it can operate in humid, highly corrosive, dusty, high - temperature and low - temperature conditions.
● The hydraulic system has the functions of automatic pressure compensation and load sensing to ensure that the oil pump and the engine will not be damaged due to overload.
● The engine throttle control has three - speed settings (or stepless speed change). When there is no operation for an extended period, the engine automatically reduces to low idle speed to meet energy - saving requirements.
● The engine intake system adopts a closed - type two - stage filtration, which is suitable for operation in dusty environments and is convenient for maintenance.
● An automatic alarm device is provided to prevent engine overheating and low oil pressure.
● A weighing device with patented technology. The weighing device with the patented technology owned by our company is adopted. This weighing device can accurately measure the load of the workbench. The weighing device is not affected by the position of the load on the platform, avoiding misjudgment that may affect the normal operation of the platform.
● PLC and CAN bus control. An industrial controller is installed on the under frame, turntable and platform respectively. The protection level of these controllers is IP65. At the same time, the advanced CAN bus control is adopted, featuring a simple circuit, good reliability, and easy maintenance and fault diagnosis.
● High safety. The double spool hydraulic circuit prevents uncontrollable accidents caused by the sticking of hydraulic valves. The emergency power unit ensures that the vehicle can be retracted in a timely manner even when the engine fails.
● Anti-misoperation function. It prevents restarting when the engine is already started, protecting the starter and the flywheel ring gear. When the amplitude and height of the platform reach a certain level, the traveling speed and the operation speed of the boom are automatically restricted, even if the engine is in a high-speed state.

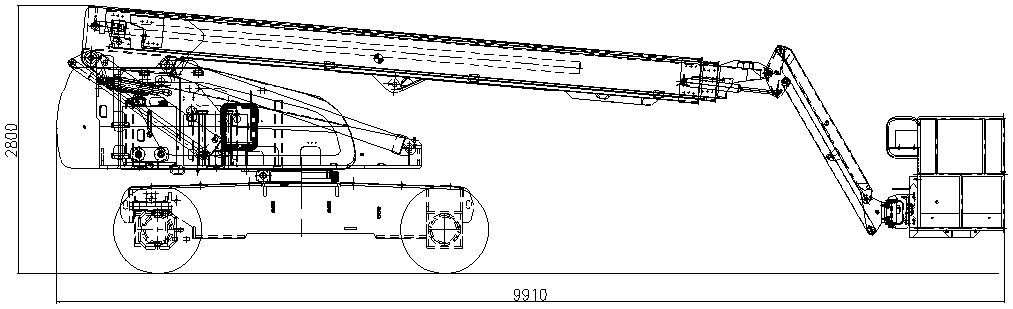

Model: XSTB20

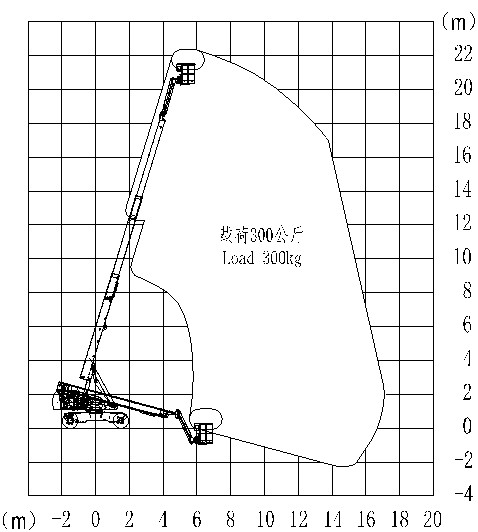

Max Working Height: 22m
Max Working Radius: 17m
Platform Capacity: 300kg
