EAST LIFT Spider Lift-Make Height No Longer A Difficulty

● It can adapt to specific working environments, namely, it can operate in humid, highly corrosive, dusty, high - temperature and low - temperature conditions.

● Equipped with upper and lower control consoles (ground console and platform console) with a reversing switch for switching between them. The upper control console has a lockout function to disable the lower console when in use.

● The boom extension, luffing, and rotation operate smoothly and are equipped with buffer devices.

● The electric self-propelled articulated boom lift uses hydraulic braking and mechanical parking brakes, offering simple operation, safety, and reliability. The service brake features automatic compensation, and the brake is of disc type.

● A foot switch is installed on the platform; operations can only be performed when the foot switch is pressed.

● When the machine is parked on a surface with an inclination exceeding 3°, the boom movement will be restricted.

● Each hydraulic cylinder is equipped with a balance valve or hydraulic lock to prevent automatic movement, and the connection between the cylinder, balance valve, and hydraulic lock is rigid.

● The system adopts PLC and CAN bus control, simplifying wiring and facilitating maintenance and repair. Metal aviation connectors are used, with a protection rating of IP65.

● Complies with EU EN280 standards and has obtained CE certification.

● Since this machine is powered by a DC battery, it can operate safely and quietly, making it suitable for both indoor and outdoor work.

● This machine is equipped with an emergency descent system, enabling it to complete tasks in case of a power outage.

Industry Solution

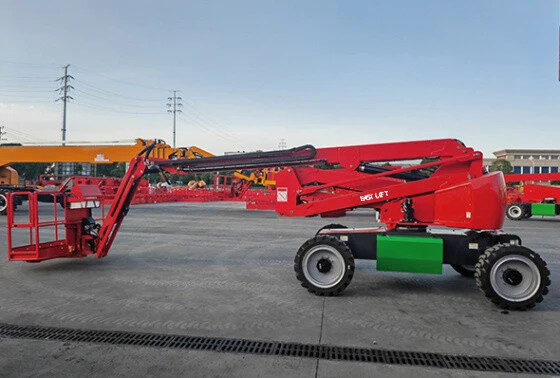

XSAB18

Model: XSAB18

Max Working Height: 20.1m

Max Working Radius: 11.6m

Platform Capacity: 230kg


GET a Quote!

WhatsApp:+86 15562189610

Email:operate01@eastlift.cn

  • 1.jpg
  • 2..jpg
  • 3..jpg
  • 4..jpg
  • 5.jpg
EAST LIFT Spider Lift Details

Project

Performance Parameters

Model

XSAB18

Working height, max.

20.1m

Platform height, max

18.1m

Horizontal working range, max.

11.6m

Carrying Capacity,max

230kg

Crossing height,max

8m

Length in stowed position

8.27m

Width in stowed position

2.38m

Height in stowed position

2.3m

Wheelbase

2.4m

Ground clearanc(center of chassis)

340mm

Size of platform(L*W )

1.83m×0.76m

Tail swing

0.24m

Turning radius,min

5.2m

Travel speed in retracted state

5km/h

Travel speed in raided state

0.8km/h

Gradeability,max

40%

Solid tire specification

33*12-20

Rotary speed of turntable

0~0.8rpm

Turntable rotation

355°(continuons rotation is optional)

Platform leveling

Automatic leveling

Platform  rotation

±90°

Hydraulic oil tank capacity

30L

Total weight

8000kg

Control voltage

24V

Travel motor

4×4 kW

Battery

48/390 V/Ah

Charger

48/60 V/A

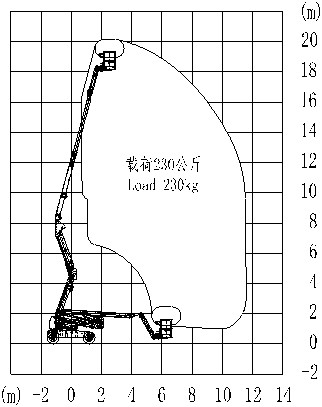

Working Range of XSAB18

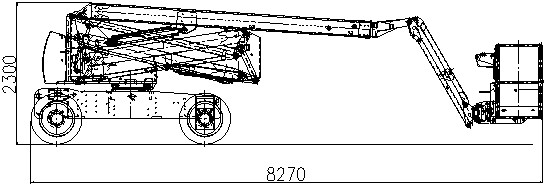

Size Information of XSAB18
