● It can adapt to specific working environments, namely, it can operate in humid, highly corrosive, dusty, high - temperature and low - temperature conditions.
● Equipped with upper and lower control consoles (ground console and platform console) with a reversing switch for switching between them. The upper control console has a lockout function to disable the lower console when in use.
● The boom extension, luffing, and rotation operate smoothly and are equipped with buffer devices.

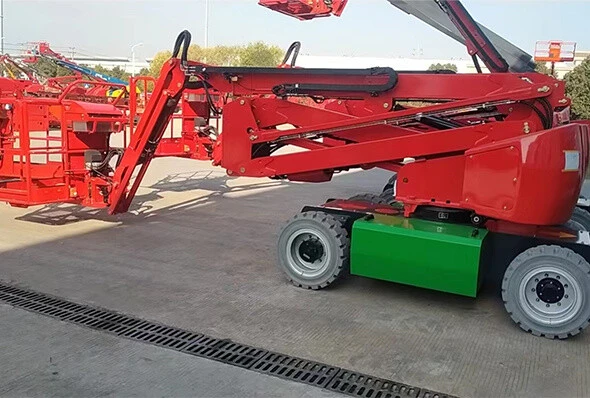

● The electric self-propelled articulated boom lift uses hydraulic braking and mechanical parking brakes, offering simple operation, safety, and reliability. The service brake features automatic compensation, and the brake is of disc type.
● A foot switch is installed on the platform; operations can only be performed when the foot switch is pressed.
● When the machine is parked on a surface with an inclination exceeding 3°, the boom movement will be restricted.
● Each hydraulic cylinder is equipped with a balance valve or hydraulic lock to prevent automatic movement, and the connection between the cylinder, balance valve, and hydraulic lock is rigid.
● The system adopts PLC and CAN bus control, simplifying wiring and facilitating maintenance and repair. Metal aviation connectors are used, with a protection rating of IP65.
● Complies with EU EN280 standards and has obtained CE certification.
● Since this machine is powered by a DC battery, it can operate safely and quietly, making it suitable for both indoor and outdoor work.
● This machine is equipped with an emergency descent system, enabling it to complete tasks in case of a power outage.

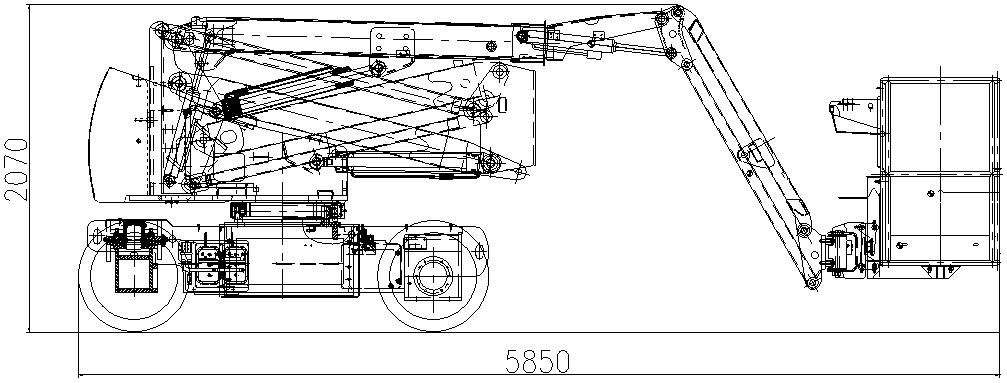

Model: XSAB12

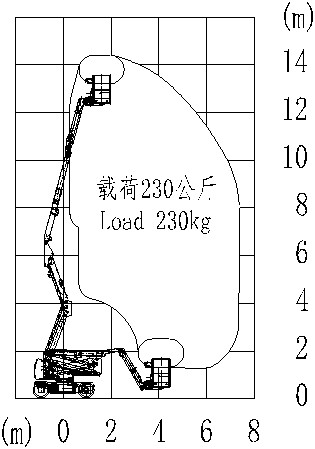

Max Working Height: 14.4m
Max Working Radius: 7.4m
Platform Capacity: 230kg
