EAST LIFT Spider Lift-Make Height No Longer A Difficulty

● Safety Certification:It complies with the EU EN280 standard and has obtained the CE certification.

● Safety Protection:A horizontal alarm device is installed on the machine. When the whole vehicle tilts beyond the safe angle, the machine will automatically enter the protection system, and only the descending action of the machine is allowed. It can be used normally after it returns to the safe state. The XSES6T aerial work platform is equipped with an explosion-proof system for the oil pipeline at the oil cylinder.

● Stepless Speed Regulation:The XSES6T model can be operated by only one person. All actions are controlled by the operating handle on the workbench, and the motor has stepless speed regulation. It effectively extends the service life of the storage battery and the motor, and the motor only consumes energy during operation.


● Large-angle Steering System:The XSES6T model is designed with a large-angle steering system, which gives the machine excellent flexibility.

● Disc Brake System:The XSES6T lifting platform adopts an electromagnetic disc brake system. When the machine is in a stopped state, the wheels are always in a braking state, and it can brake reliably on a 6-degree slope.

● Intelligent Charging System:The platform is equipped with a fully automatic charger, which can automatically complete the whole charging process and will automatically stop charging when the battery is fully charged.

● Self-diagnosis Function:It has a self-diagnosis function, allowing customers to quickly and timely grasp the working status of the equipment itself, and better maintain the equipment.

● Green and Environmentally Friendly:Since this machine uses a DC storage battery as the power source, it can be safely and quietly used for indoor or outdoor work.


Industry Solution
XSES6T

Model: XSES6T

Max Working Height: 8.2m

Max Platform Capacity:450kg


GET a Quote!

WhatsApp:+86 15562189610

Email:operate01@eastlift.cn


  • 履带剪叉1.jpg
  • 履带剪叉2.jpg
  • 履带剪叉3.jpg
EAST LIFT Spider Lift Details

Project

Performance Parameters

Model

XSES6T

Working height,max

8.2 m

Platform height,max

6.2m

Platform load-bearing capacity

450/120

Length

2.36m

Width

1.26m

Retracted vehicle height

2.24m

Height of the guardrail after folding

1.69m

Platform height,mix

1.2 m

Platform size (LXW)

2.26×1.15 m

Horizontal extension of the platform

0.9m

Ground clearance

0.2 m

Turning radius,min

0 m

Walking speed at full retraction

2km/h

Walking speed during lifting

0.8km/h

Allowable working angle,max

1.5°/3°

Gradeability

25%

Lifting motor

48/2.2V/kw

Battery

4x12/150V/Ah

Charger

48/25V/A

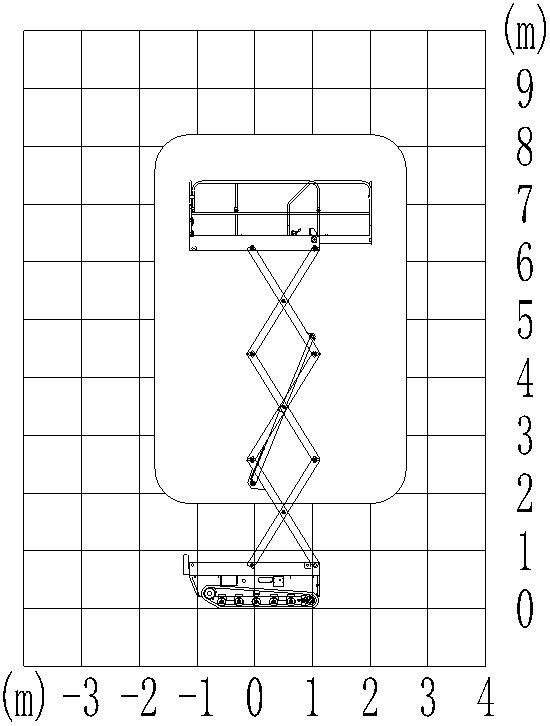

Working Range of XSES6T

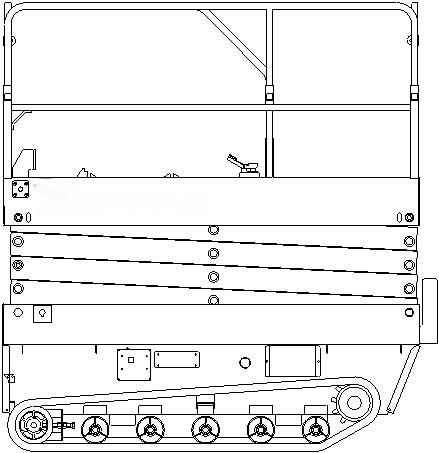

Size Information of XSES6T
