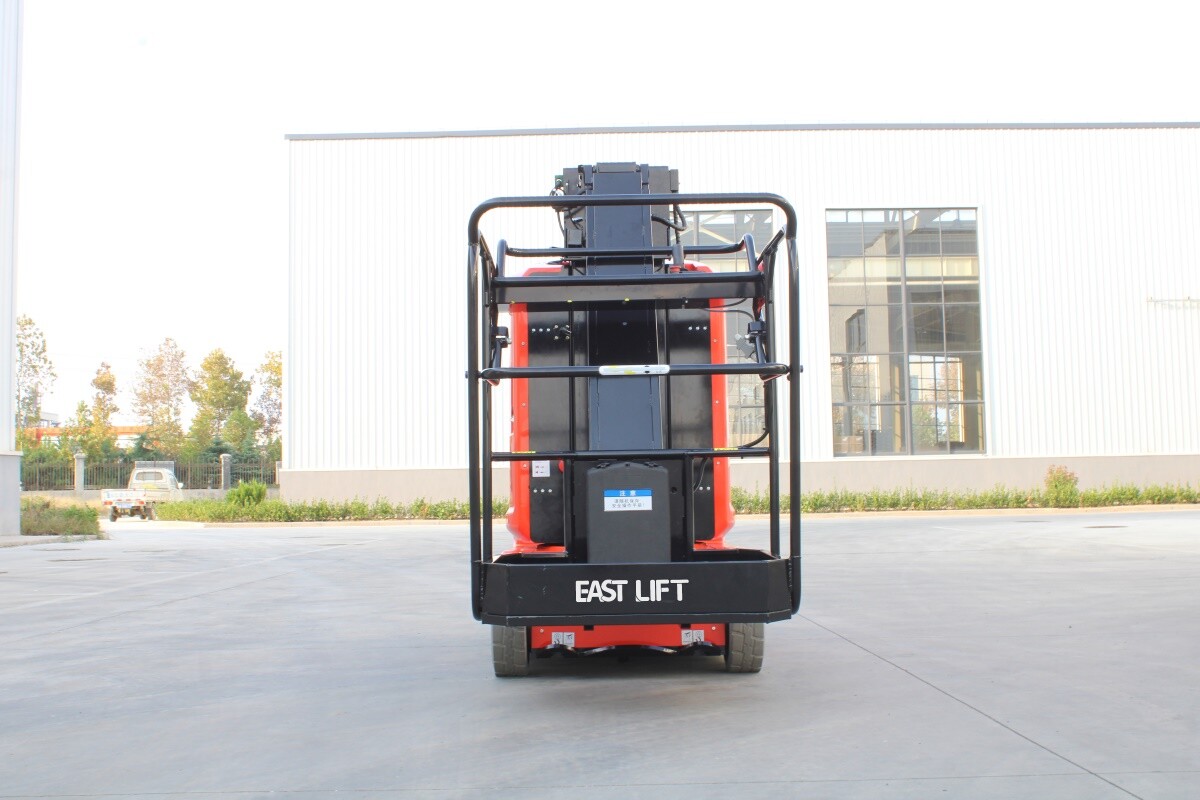

Model

XSWP-12

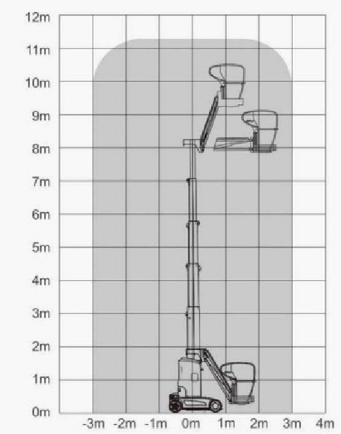

Max.Working Height

11.2m

Max.Platform Height

9.2m

Max.Horizontal Reach

3m

Up and Over Height

7.89m

Guardrail height

1.1m

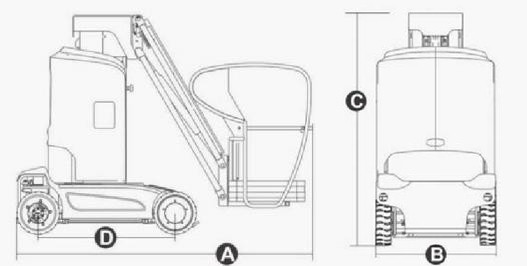

Overall Length A

2.53m

Overall Width B

1.0m

Overall Height(stowed)C

1.99m

Platform Dimension

0.62*0.87m

Ground Clearance(Stowed)

70mm

Ground Clearance(Raised)

19mm

Wheel base  D

1.22m

Loading capacity

200kg

Occupants

2

Turning Radius(Inside/Outside)

0.23/1.65m

Turret Rotation

345 °

Jib Movement

130°

Travel Speed(Stowed)

4.5km/h

Travel Speed(Raised)

0.5km/h

Up/Down Speed

42/38s

Max.Working Slope

X-2.5 °,Y-2.5 °

Tyres

φ381*127mm

Driving Motor

24V/0.9kW

Lifting Motor

24V/3kW

Battery

24V/200Ah

Charger

24V/30A

Weight

2950kg
