● It can adapt to specific working environments, that is, it can operate in humid, highly corrosive, dusty, high-temperature and low-temperature environments.
● There are dust and sand prevention devices at the boom head, cylinder piston rod and other places.
● Lifting ring positions are provided on the underframe and the turntable for easy hoisting.
● The control mode of PLC and CAN bus is adopted, which simplifies the circuit and is convenient for maintenance and repair. Metal anti-air plugs are used, and the protection level reaches IP65.
● The boom extension and retraction, luffing, slewing and the platform walking all adopt electro-hydraulic proportional control, which can achieve stepless speed regulation.
● When the equipment boom is descending, audible and visual alarms will be issued.
● Both the upper and lower control consoles are equipped with emergency stop buttons. In case of unexpected situations during operation, the operator can quickly turn off the engine to prevent the platform from continuing to move.
● Weighing device with patented technology. The weighing device with the patented technology owned by our company is adopted. This weighing device can accurately weigh the load of the workbench. The weighing device is not affected by the position of the load on the platform, avoiding misjudgment that may affect the normal operation of the platform.
● PLC and CAN bus control. An industrial controller is installed on the underframe, turntable and platform respectively. The protection level of these controllers is all IP65. At the same time, the advanced CAN bus control is adopted, featuring a simple circuit, good reliability, and easy maintenance and fault diagnosis.
● SHigh safety. The dual-spool hydraulic circuit prevents uncontrollable accidents caused by the sticking of hydraulic valves. The emergency power unit ensures that the vehicle can be retracted in a timely manner even when the engine fails.
● Anti-misoperation function. It prevents the engine from being restarted while it is already running, protecting the starter and the flywheel ring gear. When the platform amplitude and height reach a certain level, the driving speed and the boom movement speed are automatically restricted, even if the engine is running at a high speed.

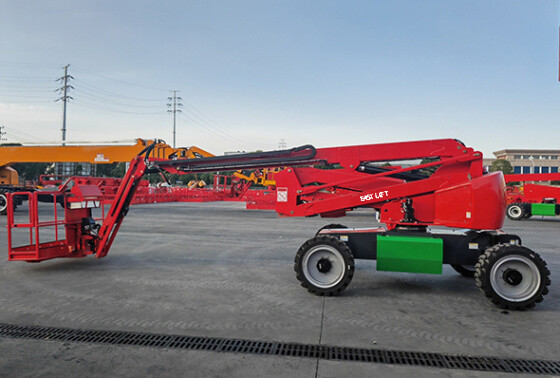

Model: XSTB18

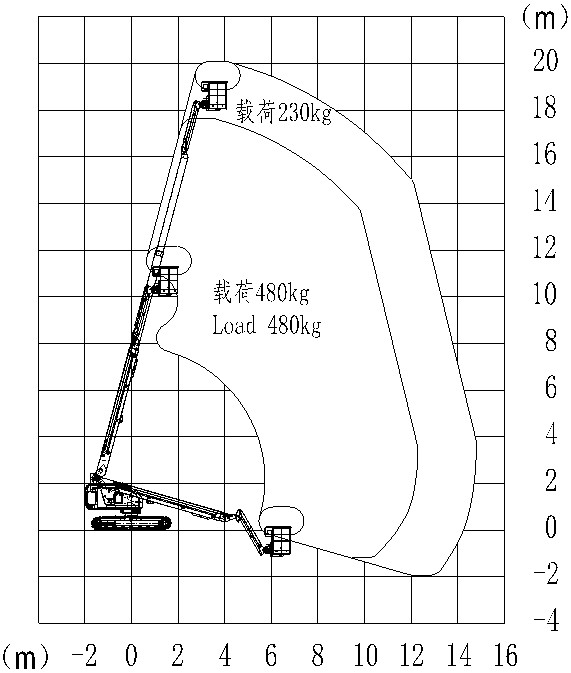

Max Working Height: 20m
Max Working Radius: 14.8m
Platform Capacity: 230kg
