● It can adapt to specific working environments, namely, it can operate in humid, highly corrosive, dusty, high - temperature and low - temperature conditions.
● The boom head, cylinder piston rod, and other parts are equipped with dust and sand protection devices.
● The drag chain is made of high-strength engineering plastic resistant to marine climates, suitable for harsh working environments.
● The main hydraulic and control components are products of imported brands, featuring high reliability.
● The hydraulic system is equipped with automatic pressure compensation and load - sensing functions, ensuring that the oil pump and engine are not damaged due to overload.
● The work bucket leveling adopts a hydrostatic leveling system. Compared with the traditional electro - hydraulic leveling, the hydrostatic leveling system operates more smoothly, has higher reliability, and more importantly, can avoid misoperations caused by electrical failures.
● Patented weighing device: Adopting the weighing device with the patented technology owned by our company, this weighing device can accurately measure the load of the workbench. The weighing device is not affected by the position of the load on the platform, avoiding misjudgment that may affect the normal operation of the platform.
● PLC and CAN bus control: An industrial controller is installed on the chassis, turntable and platform respectively. The protection level of these controllers all reaches IP65. Meanwhile, the advanced CAN bus control is adopted, which features a simple circuit, good reliability, and easy maintenance and fault diagnosis.
● High safety: The dual - spool hydraulic circuit prevents uncontrollable accidents caused by hydraulic valve jamming. The emergency power unit ensures that the vehicle can be retracted in time even when the engine fails.
● Anti - misoperation function: It prevents the engine from being restarted when it is already running, protecting the starter and the flywheel ring gear. When the platform amplitude and height reach a certain level, the traveling speed and boom movement speed are automatically restricted, even if the engine is in a high - speed state.

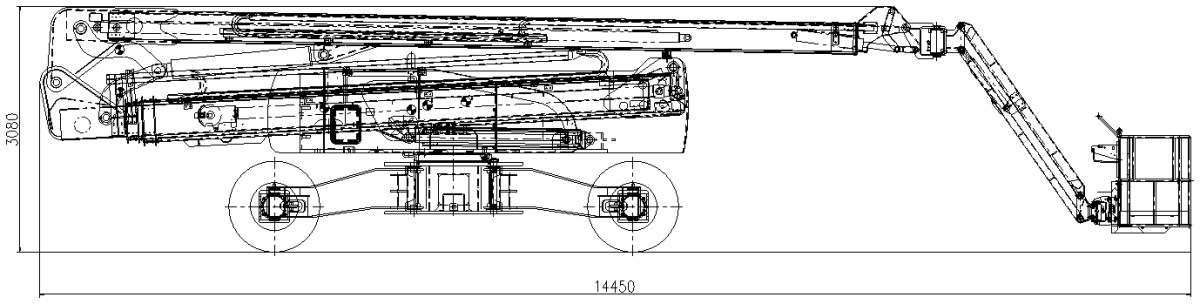

Model: XSAB38

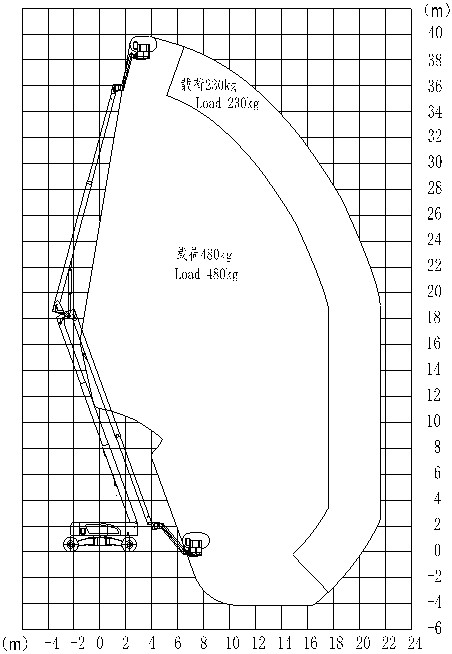

Max Working Height: 40m
Max Working Radius: 21.6m
Platform Capacity: 230kg
